Brand Name : JC
Model Number : JC-FSO-PH6MM
Certification : CE,ROHS,EMC
Place of Origin : GuangDong
MOQ : 1 square meter
Price : Discuss
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10000 square meter per month
Delivery Time : 7~10 working days after advance payment arrived .
Packaging Details : Paper carton / Wooden case/ Flight case
Color : Full-color
Life span : 100000Hours
Application : outdoor
Tube Chip Color : Full Color
Usage : outdoor
Pixels : 6mm
Certificate : CE ROHS FCC
Brightness : 6500nits
Pixel pitch : 6mm
LED Module | ||
![]() | pixel pitch | 6mm |
module size | 192*192mm | |
module resolution | 32*32 | |
LED | SMD3535 | |
Scan | 1/8scan | |
Application | Outdoor | |
Weight | 0.5KG | |
LED Cabinet | ||
![]() | Cabinet Size | 576*576mm |
Cabinet resolution | 96*96 dots | |
module quantity | 3*3pcs | |
LED driver quantity | 2pcs 5v 40A | |
Material | Die casting aluminum cabinet | |
LED Screen | ||||
![]() | Pixel | 27777dots/Sqm | Continuous Working Hours | >72 hours |
Ave power consumption | 230W/Sqm | Using Life | 100,000 hours | |
Max power consumption | 580W/Sqm | MTBF | >10,000H | |
Optimum Viewing Distance(m) | 6-100m | Scatter OOC Point | <0.01% | |
Brightness | >6000cd | Continuous OOC Point | None | |
Refresh Rate | 300---2440 frame/s | IP Grade | IP65/IP54 | |
LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
Display color | 17M——69G | Working Humidity | 10---90% | |
Packing information:
![]() |

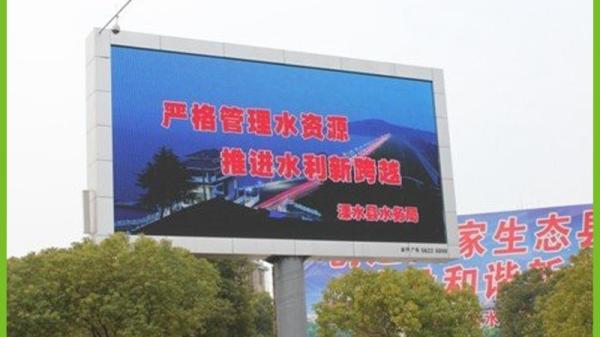

energy saving HD stage rental RGB Full color p6 video wall indoor outdoor led display screen Images |
