P8 Outdor HD Advertising Wireless Outdoor Fixed LED Display CE / ROHS High Precisio Customized Meanwell Power Supply
P8 Outdor HD Advertising Wireless Outdoor Fixed LED Display
8mm pixel pitch,1R1G1B,15625 dots/sqm,P8 SMD Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P8 SMD Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
P8 Outdor HD Advertising Wireless Outdoor Fixed LED Display Quick details
- Pixel pitch: 8mm
- Encapsulation: SMD3535
- Module resolution (L x H): 32 x 16mm = 512 pixel dots
- Pixel density: 10,000 pixel dots/m²
- Brightness of white: 6,500CD/m² at least
P8 Outdor HD Advertising Wireless Outdoor Fixed LED Display Main Features
1. Perfect Display Effect
High brightness and clearly display effect with easy use control system which allow you easy become enviable led display experts.
2. Attractive Factory Price
We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.
3. Good After-sale Service
We offer a 1-3 year warranty service, and to provide free technical guidance. We have a professional service team; they are always online waiting to serve you.
4. CE, ISO 9001, ISO 14001 Certification
All our products have CE, ISO 9001 and ISO 14001 certification. Meet most countries request on import. According to the customer's requirements, we also could provide the certificate of origin.
P8 Outdor HD Advertising Wireless Outdoor Fixed LED Display Parameters
| Pixel configuration | SMD3535 1R1G1B 3 in 1 |
| LEDs configuration | Red:wave length: 625~630nm;300-400mcd
Green:wave length: 525~530nm;600-800mcd
Blue:wave length: 470~475nm;100-150mcd |
| Pixel pitch(mm) | 8 |
| Pixel density(dots/sqm) | 15625 |
| Calibrated brightness(cd/sqm,nit) | 6500 nits(adjustable) |
| Calibrated brightness proportion ratio | R: G: B = 3:6:1 |
| Contrast ratio | 4,500:1 |
| Brightness adjustment(dimming) | 100 grade auto/manual-adjustment |
| View angle(degree)(50% brightness) | V120/H120 |
| Color capability | 4.4 trillion |
| Refresh rate(Hz) | >1200 Hz |
| Frame frequency(Hz) | >60 Hz |
| Interface port | DVI interface(DVI connector) |
| Input signal | VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
| Protection grade | IP65 front side/IP43 back side |
| LED Drive | Constant-current |
| Lifetime(hours)(50% brightness) | 100,000 hours |
| Signal transmission direction | Horizontal |
| Operating temperature(Celsius degree) | -30 ~ 65 |
| Storage temperature(Celsius degree) | -35 ~ 70 |
| Operation humidity(RH) | 0-95% |
| Operation humidity(RH) | 0-99% |
| Service | Front and back service optional |
| Control mode | Synchronous & asynchronous available |
| Communication options | Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
| Power | 120/240 VAC single phase(50-60Hz) |
| Maximum power consumption(W/sqm) | 600 |
| Average power consumption(W/sqm) | 300 |
| Screen operation mode(scan/static) | 1/4 |
| Module configuration(Pixels quantities of the module) | Length | 32 |
| Height | 16 |
| Module dimensions(mm) | Length | 256 |
| Height | 128 |
| Cabinet configuration | Length | 128 |
| Height | 96 |
| Cabinet dimensions(mm) | Length | 1024 |
| Height | 768 |
| Width | 120(+module thickness) |
| Aspect Ratio(L:H) | 4:3 or 16:9 |
| Packaging configuration | 1~6 standard cabinets in a packing case |
| Packing material | Wooden case/carton/flight case(optional) |
| Packing weight(KG) | net | 35KG/m2 |
| gross | 40KG/m2 (Iron) |

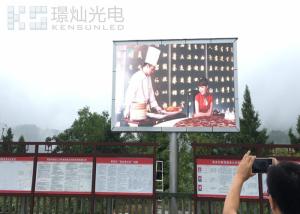

P8 Outdor HD Advertising Wireless Outdoor Fixed LED Display Pictures
