Brand Name : JC
Model Number : JC-KS-PH2.5MM
Certification : CE / ROHS / ISO, FCC, UL
Place of Origin : Shenzhen Guangdong China
MOQ : 1 Square Meter
Price : Discuss
Payment Terms : L/C , D/A, D/P, T/T, Western Union, MoneyGram, Cash
Supply Ability : 10000 Square Meter Per Month
Delivery Time : 8 -10 working days after advance payment arrived .
Packaging Details : Wooden case / Flight case / Carton
MTBF : ≥50,000 hours
Computer Operation System : Win 98/ Win XP/ Win 2000
Waterproof Level : IP43
Out of Control Rate : 0.01 %
Frame Frequency : 60-85HZ
Module Resolution(Pixel) : 64dots ×32dots
Cabinet Resolution : 307x576dots
Contrast : ≥2000:1
Commerical Advertising P3.91 LED Cabinet Maintenance 250x250mm Popular Project LINSN 2200NIT CE ROHS Fixed Installation
Commerical Advertising P3.91 LED Cabinet Maintenance Quick detalied
1. Pixel pitch: 3.91mm
2. Encapsulation: SMD 2121
3. Module resolution (L x H): 64X64mm = 4096 pixel dots
4. Pixel density: 65536 pixel dots/m²
5. Brightness of white: 2200CD/m² at least
Commerical Advertising P3.91 LED Cabinet Maintenance Notes
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Commerical Advertising P3.91 LED Cabinet Maintenance FAQ
1. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.
2. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days
4.How about the warranty ?
We have two years warranty.
Commerical Advertising P3.91 LED Cabinet Maintenance Parameters
Pixel Pitch | 3.91mm |
Module Size | 250x250mm |
Module Resolution(Pixel) | 64dots ×64dots |
Pixel Density | 65536 dots |
LED Type | SMD 3 in 1 |
Pixel Configuration | 1R1G1B |
Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
Drive Mode | Dynamic 1/16 Duty Constant Current |
Cabinet Size | 500x500mm |
Cabinet Resolution | 128dots ×128dots |
Brightness | ≥ 1,200cd |
Contrast | ≥2000:1 |
Viewing Angle | 140°(Horizontal )/140°(Vertical ) |
Minimum Viewing Distance | 2.5m |
Grey Scale | 10bits/1024levels |
Color Capability | 16,777,216 |
Color Temperature | 5000-9300K |
Average Power consumption | 400W |
Working Voltage | AC 220V/110V s±15% 50-60 HZ |
Frame Frequency | 60-85HZ |
Refresh Frequency | 240-1000HZ |
Brightness Correction | Pixel, Module, Cabinet Correction |
Operating Temperature | Static:-40°C~+85°C Working:-20°C~+60°C |
Operating Humidity | 10-90% RH |
LED Lifespan | 100,000 hours |
MTBF | ≥50,000 hours |
Computer Operation System | Win 98/ Win XP/ Win 2000 |
Video Signal Input | RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
Video Signal Output | RF, S-Video, GB, RGBHV, YUV, YC etc. |
Graphics Card | DVI Graphics Card |
Control Distance | UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
Control System | LINSN OR DB-STAR |
Software | LED studio 10.0 |
Waterproof Level | IP43 |
Installation | Wall mount, hung and stand structure |
Out of Control Rate | 0.01 % |
![]() |

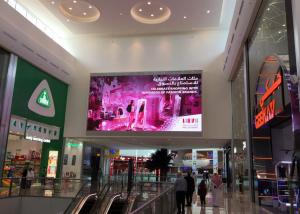

Commerical Advertising Cabinet Outdoor Smd Led Screen Easy Maintenance 250x250mm Images |
